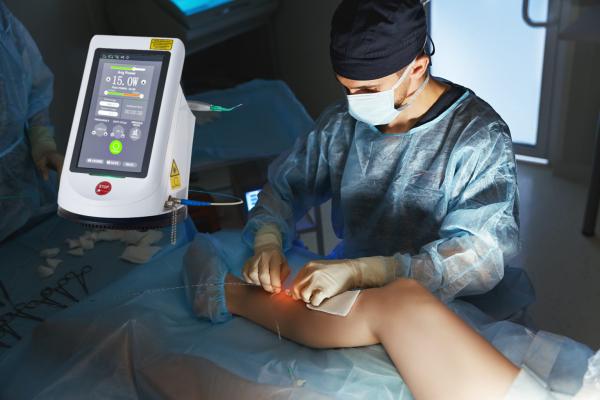

Portable 980nm EVLT Laser Machine for Varicose Veins treatment
What Is Endovenous Laser Ablation (EVLT/EVLA) For Vein Treatment?
EVLT_laser_treatment Varicose_veins_clinic_NYCWhat is endovenous laser ablation? Also known as EVLA or EVLT, the endovenous ablation or laser ablation uses heat and radio wave energy to burn and close varicose veins or damaged veins. Doctors use this procedure to help ease symptoms such as swelling, irritation, and pain. Laser ablation is generally safe. It is minimally invasive and causes less pain. This treatment has a quick recovery period as compared to traditional surgical methods used for the same problems. Another advantage of laser ablation is that it leaves no scars on the skin.
What Conditions are Treated by Endovenous Laser Ablation?
endovenous_laser ablation_vein_ diagramEndovenous laser ablation treats the following conditions:
Varicose veins
Chronic Venous Insufficiency
Throbbing leg pain
Swollen legs
Skin irritation or ulcers
Skin Discoloration
Phlebitis – painful swelling of the veins
Leg heaviness or fatigue
dual wavelength laser is one capable of producing two widely separated laser wavelengths in a single device. Normally, laser devices operate on a single wavelength, or two closely spaced wavelengths.
BERYLAS laser is capable with one, two and three avelength. It’s compact yet powerful, dual-wavelength laser source that is now available in a range of different wavelength pairs including 810nm, 980nm, 1064nm, 1210nm, 1470nm, 1940nm.
This new innovative technology provides a compact and cost-effective alternative to setting up and aligning two separate laser sources whilst providing greater long term reliability and lifetime than traditional technologies.
BERYLAS laser family continues to provide long lifetime and delivers exceptional power stability with low amplitude noise. Additional functionality such as interlock and output diagnostics for laser current and temperature level as standard, mean your instrument design capabilities can be taken to new levels of innovation.
Some of the product features include:
- Up to 30W as standard per wavelength
- High stability, high beam quality
- Low noise
- Software controllable
- OEM versions available
- We are experienced supplier of laser modules, laser diodes, and laser accessories.
- Laserland Lab is capable of laser design, laser testing and comprehensive solution
- Wide range of laser module options by wavelength and sizes
- We offer professional support because we care about your business as much as you.
Technical Parameters
| Laser Type | GaAIAs Diode Laser |
| Wavelength | 980nm |
| Maximum Power | 15W/30W |
| Operation Mode | CW, Single or Repeat Pulse |
| Pulse Duration | 10us -3s |
| Repetition Rate | 0.2Hz – 50KHz |
| Pilot Beam | Red Diode Laser of 650nm, Power <5mW |
| Control Mode | True Color Touch Screen (7 inches, resolution 1024*600px) |
| Transmission System | Medical Fibers with SMA905 Connector |
| Dimensions | 160(W) * 180(L) * 235(H)mm |
| Weight | 2.1kg |
ENDOVENOUS LASER TREATMENT ADVANTAGES
There are many advantages to endovenous laser ablation:
- Non-surgical, minimally invasive procedure
- Minimal discomfort
- Quick resumption of normal activities
- Performed in-office
Features
● Compact and modular design, mainly in silver aluminum alloy housing, portable and easy to move to different place.
● 7inch color touch screen, intuitive and user friendly operate interface.
● German diode and German laser technology
● Perfect heat management,support continue working without overheating problem.
● provides a single or multi wavelength 980nm/1470nm /1940nm
● Suitable for various surgery and therapy application: Endovenous laser ablation, ENT surgical intervention,PLDD,etc.
● Intelligent software, Flexible power adjustment range. Support custom settings for particular treatment.
● Support different operation mode: CW, Single or Repeat Pulse
● Medical fibers support with standard SMA905 Connector

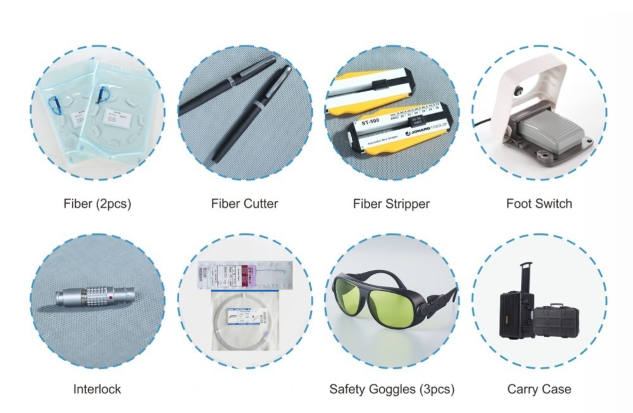

● Providing a complete set of accessories
