Medical diode laser 15 Watt Harlas 1470nm Endovenous Laser Therapy
What is Endovenous Ablation?
Endovenous ablation is a procedure that uses heat energy to eliminate unhealthy veins. The unhealthy veins that cause vein disease typically are a few centimeters deep within your legs. Their function is to move blood in one direction, from your feet towards your heart. When the valves within these veins break, blood goes back down in the wrong direction. This causes a build up of venous pressure, which can cause Spider and Varicose Veins to appear on the surface of your skin.
How Does Endovenous Ablation Work?
Laser removal of varicose veins consists in inserting the optical fiber inside the malfunctioning vessel, up to its outlet. Then it is slowly pulled out. This "closing a vein from the inside" uses the phenomenon of light absorption in the blood hemoglobin in the diseased blood vessel. The energy generated in this process causes the diseased vein to contract and then close. Over time, there is fibrosis of the vein and spontaneous disappearance. Thus, the inconvenience of surgical intervention and surgical removal of the vein can be avoided.
The entire procedure takes 15-30 minutes and in most vein centers you are wide awake and completely comfortable. There is no downtime; and you can return to work the very same day.
Ablation technology has been around for over ten years, and is an absolute requirement for a good vein clinic.

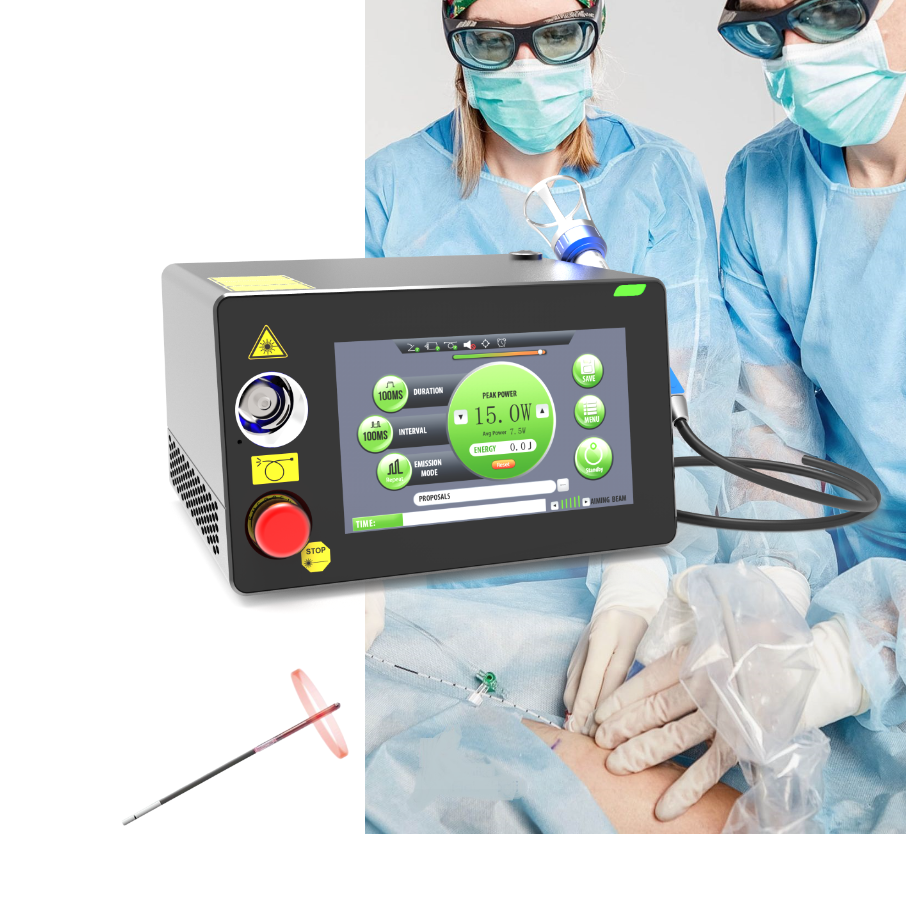

Harlas dual wavelength 1470nm Minimally invasive laser is an outstanding surgical laser machine designed for endovenous laser treatment. It has a compact and modular design mainly in silver aluminum alloy housing and black tempered glass panel, exuding soft luster, aesthetic feeling and delicate texture. It has a light weight and small size,which is easy to carry and easy in cleaning.
980nm achieving high absorption simultaneously through hemoglobin and water, due to its wavelength, thus with a high ablation capacity which leads to complete clusure of treated vein . The 1470nm wavelength,cooperating with a radial, is very precise and additionally protects the patient against excessive heating of the tissues surrounding the removed vein.
Technical Specifications Of Harlas Surgical Laser
| Laser Type | GaAIAs Diode Laser |
| Wavelength | 980nm | 1064nm | 1470nm | 980nm+1470nm | 650nm+810nm+980nm+1064nm |
| Maximum Power | 30W/45W | 30W | 15W | 15W+10W | 2mW+15W+15W+15W |
| Operation Mode | CW, Single or Repeat Pulse |
| Pulse Duration | 10us -3s |
| Repetition Rate | 0.2Hz – 50KHz |
| Pilot Beam | Red Diode Laser of 650nm, Power <5mW |
| Control Mode | True Color Touch Screen (7 inches, resolution 1024*600px) |
| Transmission System | Medical Fibers with SMA905 Connector |
| Dimensions | 230(W) * 180(L) * 135(H)mm |
| Weight | 3.5KG |
Sensitive Touch Screen And Easy-To-Use Interface
Harlas surgical laser gets a 7-inch color touch screen with high resolution 1024*600px that users can easily perform various kinds of surgical treatments or make various settings in a few taps.
The intuitive operation system with power level, three operating mode (cw, single pulse, repeat pulse) and timer selections allows the user to use, adjust and save protocols easily.
The screen brightness can be customized and adjusted for each operating environment.
0.1W~45W Surgery Laser Machine Of Different Wavelengths
Harlas surgical laser offers various wavelengths such as 650nm, 810nm, 980nm, 1064nm, 1470nm and etc. for doctors to select in line with the clinic treatment. Different wavelengths have different absorption capability and penetration characteristics, meeting a variety of actual clinical needs such as ablation, coagulation, vaporization and etc. Harlas surgical laser is developed with a wide selection of output powers from 0.1W to 45W, providing high flexibility for surgery doctors to choose according to the practical surgery and therapy application requirements.
Providing A Complete Set Of Accessories

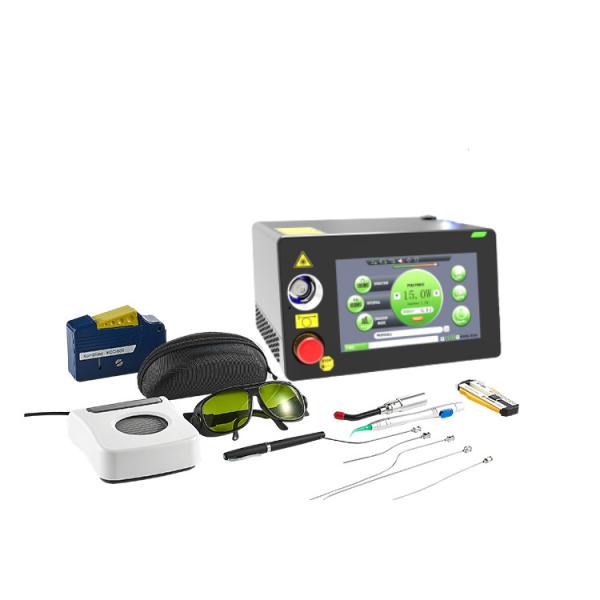

Harlas surgery laser equipment is specially developed with a full set of accessories which makes it available for multiple surgery and therapy treatment uses. Its accessories include safety goggles, fiber cutter, fibers, footswitch, surgical handpieces, fiber stripper, therapy handpieces. The full-range of accessories and our comprehensive services will bring you a convenient one-stop experience.
Stable Working Performance, Long Stability And Competitive Price
Harlas surgical laser is designed with enhanced internal hardware structure and optimized software programs that it can be applied in various surgery and therapy scenarios for a long time with optimal performance and reliability. We also provide excellent after-sales service, free-warranty service and custom service for our customers. While maintaining the Germany quality, we provide competitive price for wholesalers and distributors!
Best for :Large varicose veins, vein symptoms including discomfort, heaviness, leg fatigue, restless legs, cramps, treating venous insufficiency (the underlying cause of spider veins and varicose veins)
